In our previous discussion, we examined the evolution of body composition analysis techniques, from underwater weighing to sophisticated neutron activation analysis. Each method sought to decode the body′s secrets through different approaches. During this same period, another research pathway was quietly taking shape—one based on a phenomenon that had existed since the beginning of time but remained largely overlooked. Let us now examine how bioelectrical impedance analysis (BIA) emerged from basic electrical research to become a vital diagnostic tool in modern medicine.

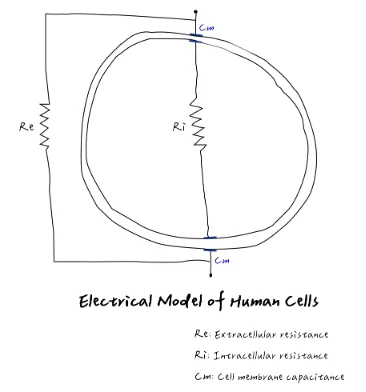

The concept of Bioelectrical Impedance Analysis (BIA) traces back to 1871, [1] when scientists first discovered that biological tissues possessed electrical properties. Between 1925 and 1936, researchers established equivalent circuit models, laying the groundwork for future developments.
The Heart′s Hidden Language
In the 1940s, physicians faced a perplexing challenge. They could listen to heartbeats through a stethoscope, but the heart′s deeper secrets—how much blood it pumped, how circulation flowed through vessels—remained frustratingly out of reach, hidden within the body′s depths.
This dilemma led Nyboer and his colleagues to make an innovative leap. [2] They realized that blood conducted electricity far better than surrounding tissues, leading them to hypothesize that by passing a small electrical current through the body, they might detect blood flow changes through variations in electrical resistance.
This insight gave birth to impedance plethysmography. Physicians placed electrodes on arms or legs and observed a consistent pattern: when the heart contracted, blood surged into arteries and resistance dropped; when the heart relaxed, blood flow slowed and resistance rose again. For the first time, they could actually "see" the rhythm of blood flowing through vessels.
Kubicek and his team soon extended this concept to the chest cavity. They found that changes in blood distribution within the thorax during each heartbeat were reflected in resistance measurements. Through careful calculations, they could estimate the volume of blood pumped with each heartbeat. This thoracic bioelectrical impedance technology gave physicians their first non-invasive window into cardiac function.
Expanding Horizons
By the 1960s, scientists began pondering a broader question: could these same electrical principles reveal the composition of the entire body? After all, muscle, fat, and bone contained different amounts of water, so their electrical conductivity would naturally vary.
In 1962, Thomasset first proposed using multi-frequency BIA to predict total body water and extracellular water, opening new possibilities for the field. The real breakthrough came in 1969 when Hoffer and his research team conducted a pivotal experiment. They measured whole-body resistance in healthy individuals and patients while simultaneously measuring total body water through other methods. They discovered that height squared divided by resistance showed a strong correlation with total body water, with correlation coefficients of 0.92 to 0.93. This finding means body water content can be accurately predicted through resistance measurements, with the body′s secrets emerging through these numerical relationships.
This discovery opened the door for BIA to enter clinical practice. In 1985, Lukaski and colleagues developed single-frequency BIA, using a 50 kHz frequency to assess fat-free mass. This gave nutritionists and physicians a simple tool that could quickly assess body composition by merely placing electrodes on hands and feet.
The Gap Between Ideal and Reality

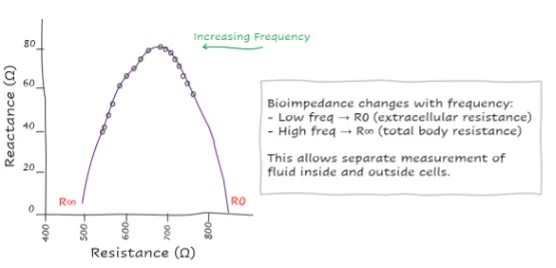

The story didn′t end there. Researchers quickly discovered that single frequency had its limitations. Low-frequency current mainly traveled through extracellular fluid, while high-frequency current could penetrate cell membranes and enter cells. This led to the development of bioelectrical impedance spectroscopy (BIS), using frequencies ranging from 4 to 1000 kHz to theoretically measure intracellular and extracellular water separately.
However, reality proved more complex than theory. When these technologies were applied to patients, researchers found their accuracy significantly compromised. Results for obese patients, those with kidney disease, and heart failure patients often deviated substantially from expected values.
The problem lay in the overly idealized assumptions underlying these prediction equations. They treated the human body as a standard cylindrical conductor, assuming water was uniformly distributed throughout the body and that tissue composition was similar across different regions. But real bodies defy such simplification—everyone′s arms, torso, and legs have unique shapes, and muscle and fat distribution varies considerably between individuals. When disease enters the picture, these individual differences become even more pronounced. Heart failure might cause lower limb swelling, kidney disease disrupts whole-body water balance. These changes amplified the prediction equations′ errors.
Return to Simplicity
Faced with these limitations, researchers in the 1990s began reconsidering their approach. Italian scientists Piccoli and his colleagues proposed what now seems surprisingly straightforward: instead of relying on complex prediction equations, why not use the raw resistance and reactance values directly?
This idea led to the development of Bioelectrical Impedance Vector Analysis (BIVA). Researchers plotted resistance and reactance as vectors and found that healthy populations showed a regular elliptical distribution pattern. Different physiological states appeared in specific regions of the graph: dehydration and edema affected positions along the hydration axis, while variations in muscle mass influenced distribution along the other axis. Using this approach, physicians could simultaneously assess both the patient′s hydration status and body composition.
The Insights of Phase Angle
Building on this foundation, researchers discovered that phase angle, a seemingly simple parameter, actually contained profound information about the body. Healthy cell membranes maintain stable electrical properties, producing larger phase angles, while damaged or aging cells show decreased values.
This discovery opened new clinical possibilities for BIA. Researchers found that cancer patients with phase angles below 5 degrees typically had poorer outcomes, while each 1-degree increase in phase angle might improve survival rates by 25%. A single number could reveal so much about a patient′s prognosis.
Technology also evolved toward more precise regional measurements. For breast cancer patients with lymphedema, physicians began comparing impedance differences between affected and healthy limbs. Even early lymphedema without obvious swelling could be detected. During wound healing, researchers found that rising resistance indicated tissue repair, while decreasing values might signal infection or complications.
The development trajectory of this technology resembles a journey of deepening understanding. From initial cardiovascular monitoring to body composition analysis, then facing complex realities that demanded rethinking, and finally returning to a deeper appreciation of basic electrical parameters. Each turning point made the technology more practical and reliable.
BIA′s Present and Future
BIA has traveled a circuitous path from physiological function monitoring to body composition analysis and back to clinical applications. Modern developments favor using raw electrical parameters like phase angle and BIVA rather than complex predictive models. This return to fundamentals actually provides more accurate and practical clinical information.
As technology continues advancing, BIA promises to become an important monitoring tool in personalized medicine. This seemingly simple electrical measurement technique is opening new windows for modern medicine.
Note: While BIA technology is convenient to use, measurement results in some situations still require interpretation by professional medical personnel. If you have health concerns, please consult qualified healthcare providers.
Reference
[1] Kyle, U. G., Bosaeus, I., De Lorenzo, A. D., et al. (2004). Bioelectrical impedance analysis—part I: review of principles and methods. Clinical Nutrition, 23(5), 1226-1243.
[2] Lukaski, H. C. (2013). Evolution of bioimpedance: a circuitous journey from estimation of physiological function to assessment of body composition and a return to clinical research. European Journal of Clinical Nutrition, 67, S2-S9.
